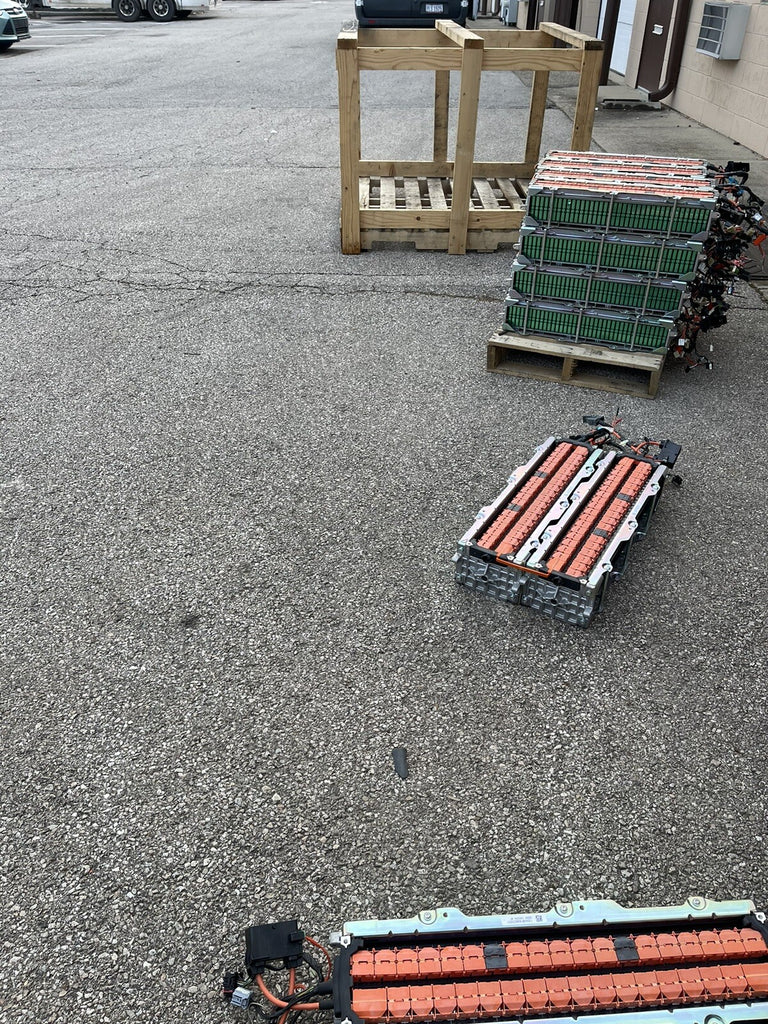

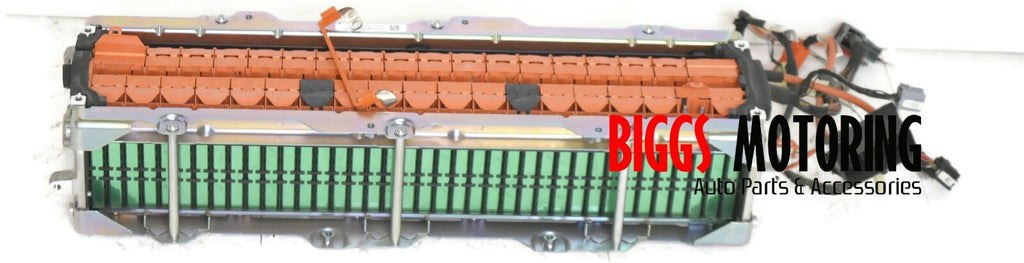

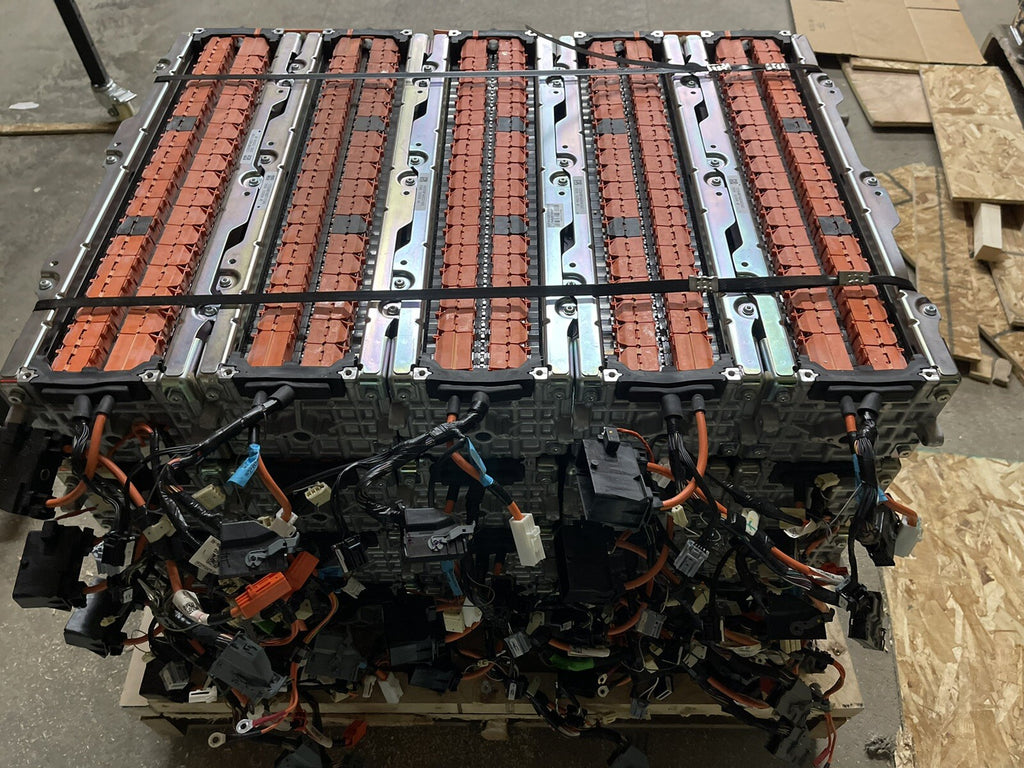

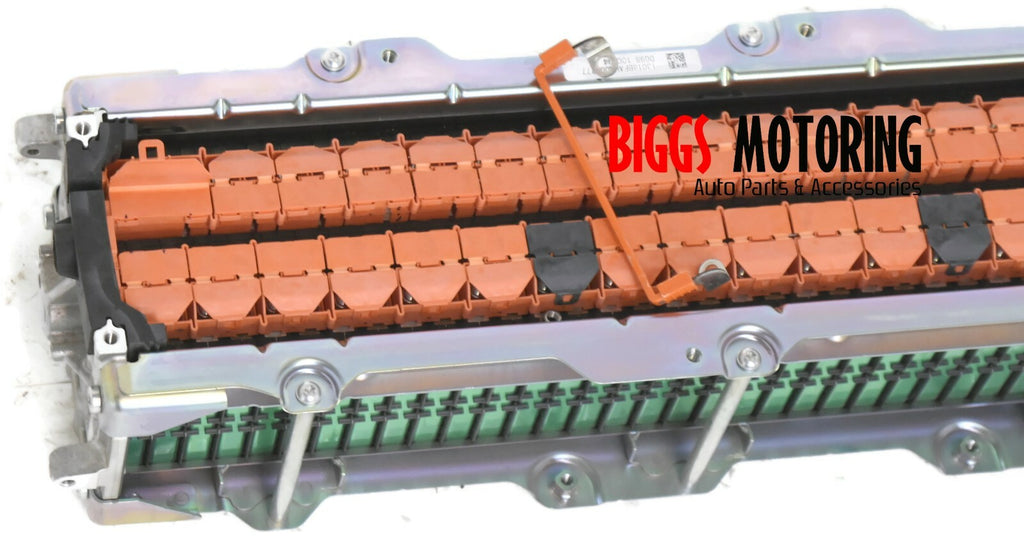

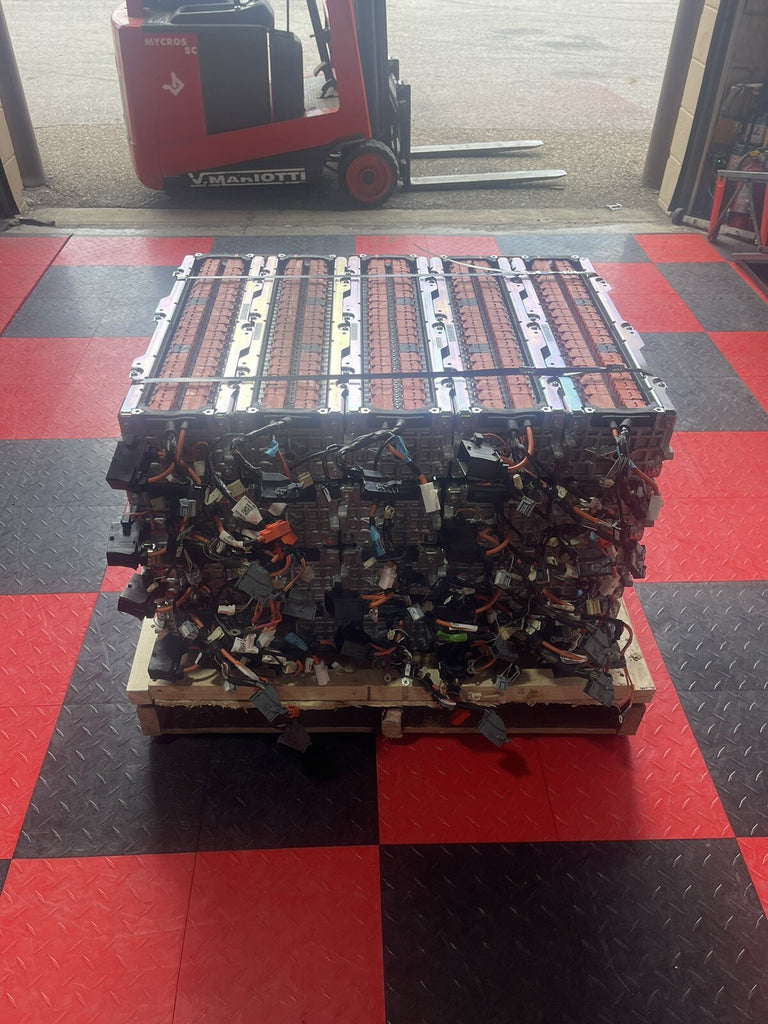

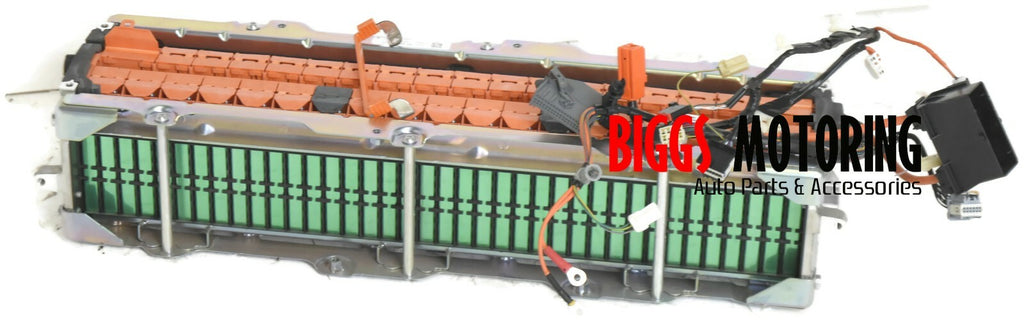

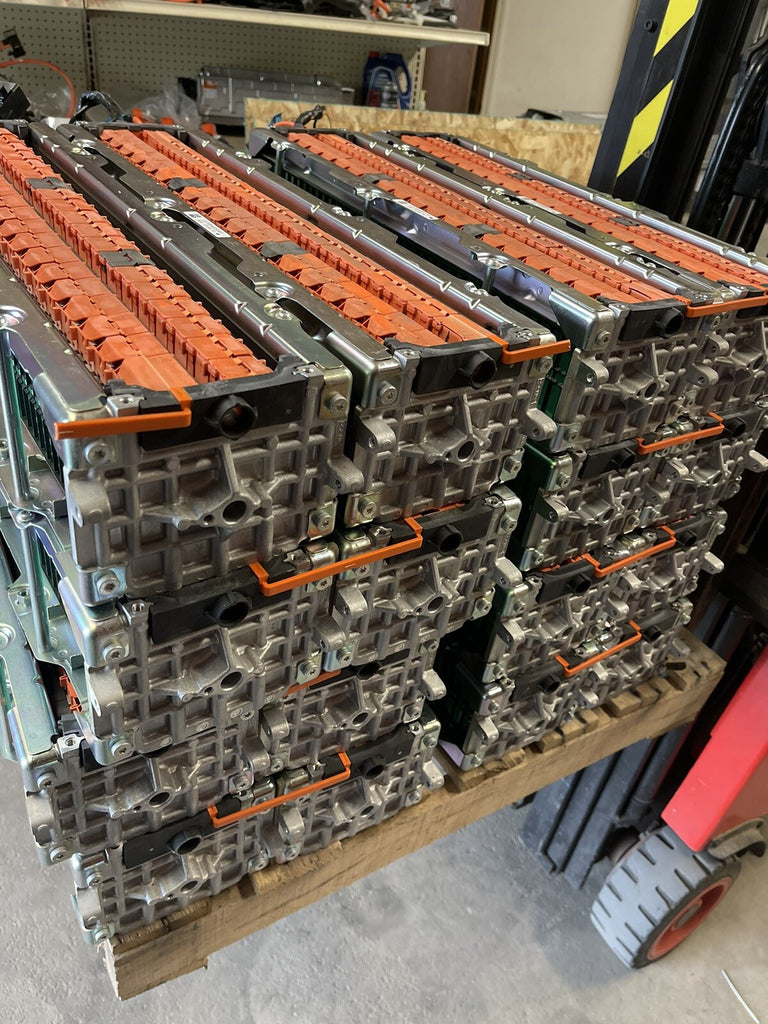

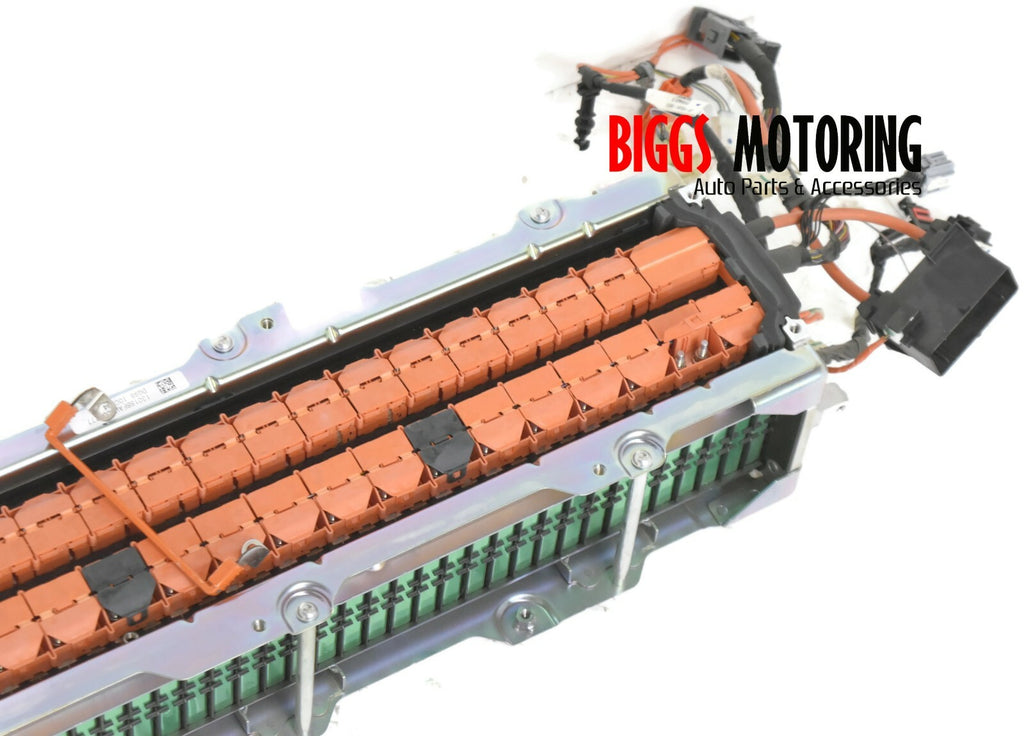

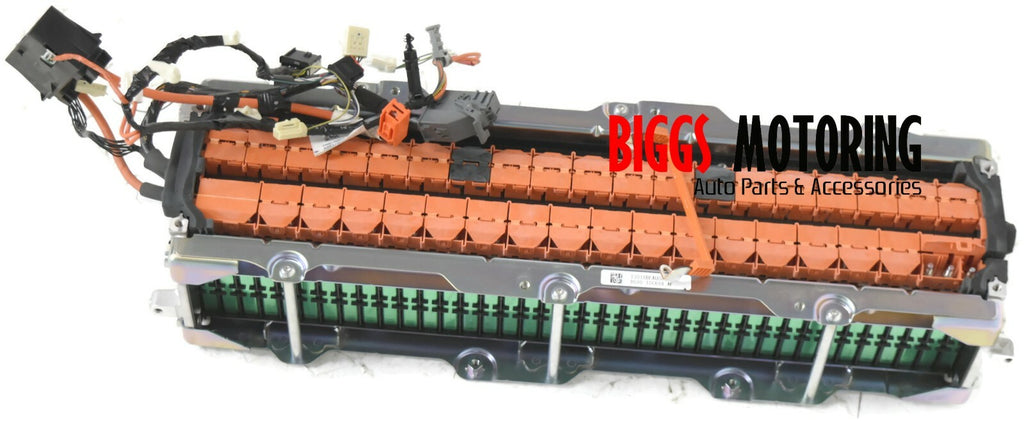

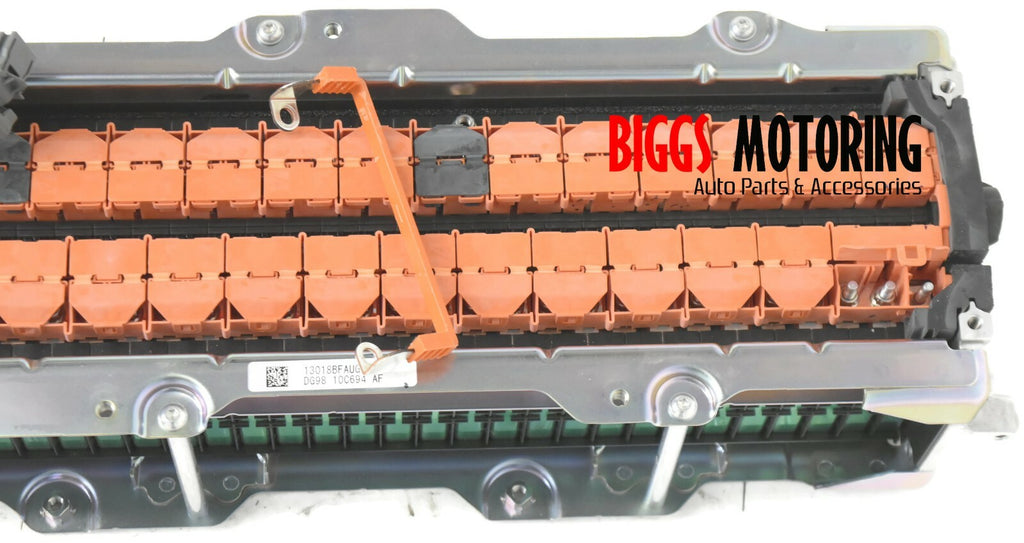

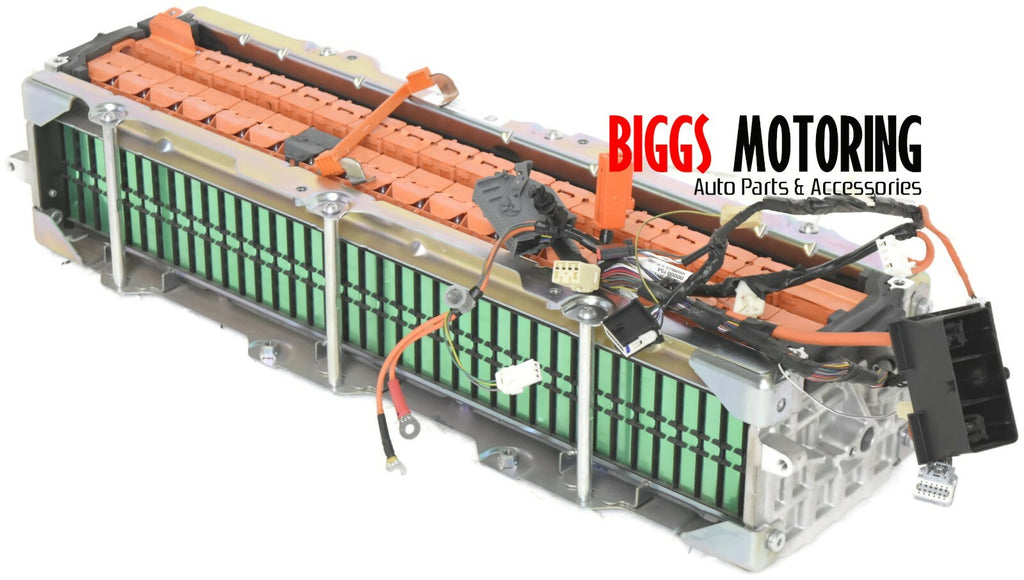

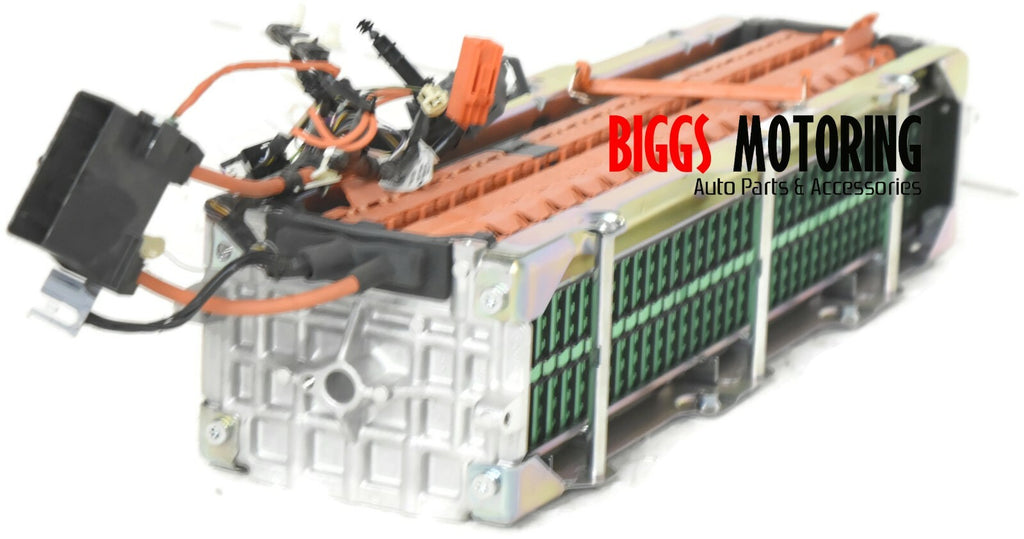

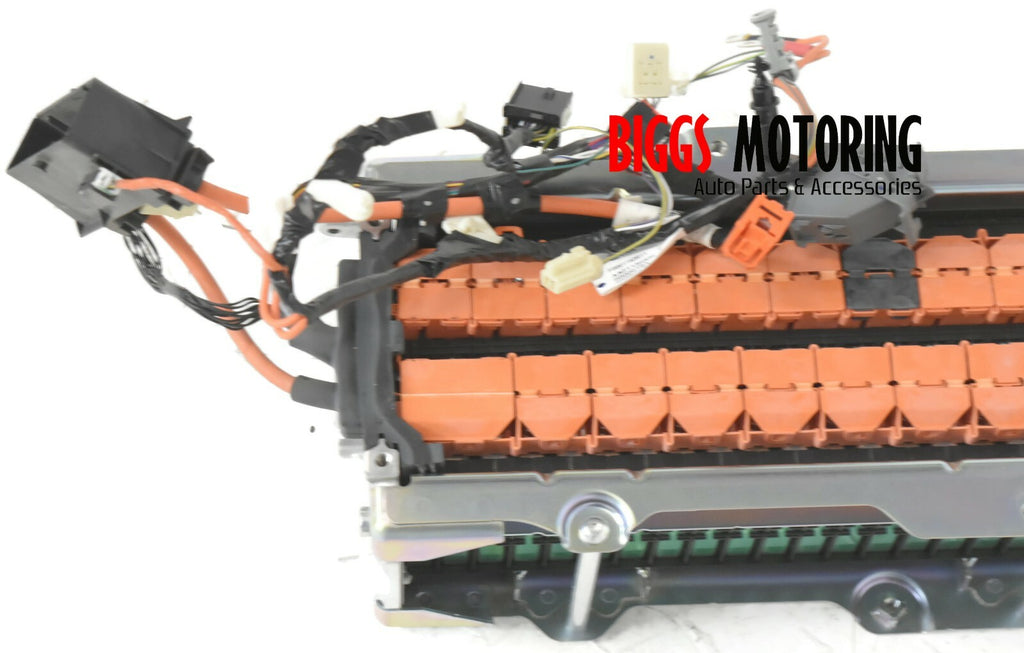

13-15 Ford C-Max Hybrid Battery 5Ah Battery Cell Module DG98-10C694-AF Cmax 38 C

• Factory Oem Used Hybrid Battery Cell Module

• Item is In Good Working Order, Ready To Be Installed...

• Model: C-Max

• Year: 2013-2015

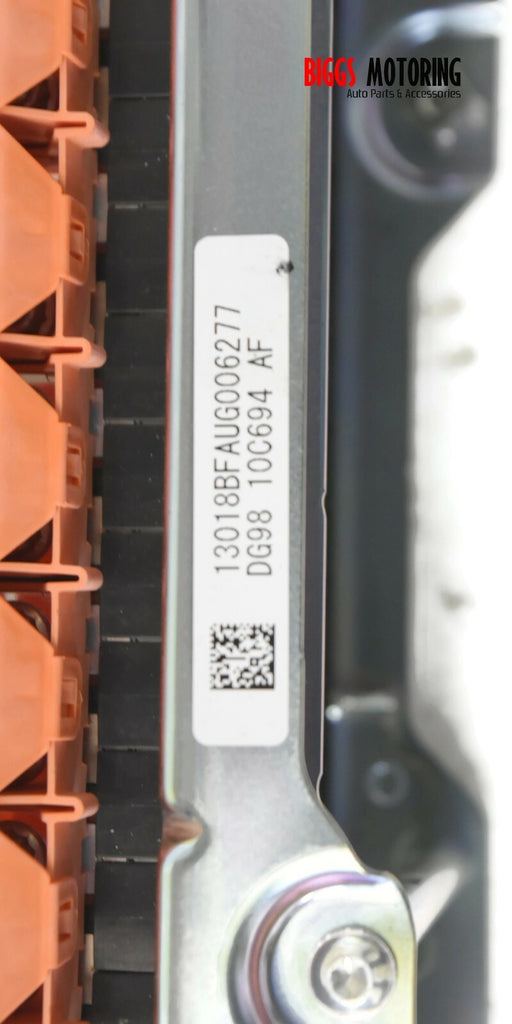

• Part #: DG98-10C694-AF

Perfect for powering you sound system or solar etc ..

• MODULE SPECIFICATIONS

  Number of cells	38
  Construction	38 in-series
  Length	25"
  Width	7 1/2" (120mm)
  Height	5 1/8" (85 mm)
  Weight	33 lbs

  CELL SPECIFICATIONS

  Cathode material	Lithium Ion Manganese Oxide, LiMn2O4
  Anode material	Hard Carbon
  Average voltage	3.7VDC
  Maximum Voltage	4.2VDC
  Minimum Voltage	2.75VDC
  Terminal Thread	M5 0.8
  Amp Hour	5.5 Ah
  Peak current	150A
  Continuous current	100A
  Length	4 3/4" (120mm)
  Width	1/2" (13mm)
  Height without terminals	3 3/8" (85 mm)
  Height with terminals	4 3/16" (106mm)
  Weight	9 oz
